COLOR RANGE
RGBW/RGBA/RGB/DW/Monowhite color
SOURCE LIFE
50,000 hours at 70% lumen maintenance at 25-deg-C
High-Power-LEDs Single Chip
Single Chip LEDs
BEAM ANGLE
8deg/15deg/25deg/40deg/60deg or 10x60deg/20x60deg/30x60deg available
POWER CONSUMPTION
230W max.
FLUX LUMINOUS
11730lm max.
CONNECTION
6-core AC/DMX Cable in and Cable out c/w pushlock IP connectors for daisy chain
CONTROLLED
Integrated PSU & DMX/RDM control, AC100~277V input, addressed by RDM Tester with temperature sensor(*wilress DMX control available as option)
TEMPERATURE SENSOR
Auto dim down when overheading DMX Addressing
RDM FUNCTIONALTY
DMX Addressing
Device Info(Model Name/Manufacture Name) Reading
Power State(Current checking / Power consumption) Checking
Software Version Reading
Fixture Realtime Temperature Checking
HOUSING
Die-casting aluminum in Grey/black/white color and 8mm thickness temperature
OPERATING TEMPERATURE
-20°C~ +50°C
STORAGE TEMPERATURE
-20°C ~ +70°C

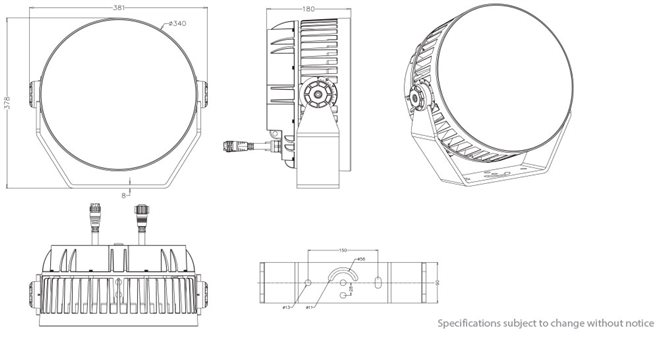

DIMENSIONS
Dia.340mmx180mm(H)
ACCESSORIES
Half/Full Snoot and SS safety chain
