Colour
WW - Warm
White NW - Natural White
CW – Cool White
RGB – RGB Color
RGBW – RGB White
RGBDW – RGBWWCW
Custom LED color combinations avialable
Beam Angle
F – 120°
B – 30 * 60°
Housing Length
320mm/ 640mm/ 960mm/ 1280mm/ 1600mm/ 1920mm/ 2240mm
Control
Standard DMX512A, DMX512 Extended or Acclaim High Speed protocol40mm resolution, each 40mm section can be controlled individually with 16 bits gray scale
Power Consumption
Max 30W/m LED
Voltage Input
7 - 60 VDC input with built-in DC to DC constant voltage convertor
Lumen Maintenance
L70 @ 65,000 hours ta = 50° C (122°F)
Mounting
Standard mounting
Finish
Black matte Or Gray anodized or custom color
Operating Temperature
Ta = 0°C to 55°C (32°F to 131°F), optional extended version to 70°C (158°F)
IP Rating
IP65 (incl. fixture connectors), IP67 for enclosure
IK Rating
IK06 rated fixture body construction
Weight
500g @ 1000mm (standard mounting)
Fixture Connectors
Through wiring for end-to-end connection via snap-in and lock connectors
Warranty
3 years, 5 years optional

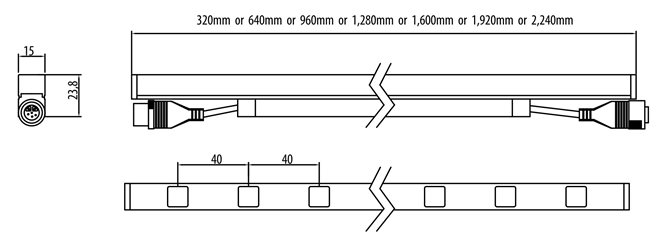

Dimensions
L: Custom to fit W: 15mm H: 23.8mm
Certifications
CE Certified
